Specification
| Model | HGB-50-4+HAL-5HP-4 | HGB-100-4+HAL-5HP-4 | HGB-200-4+HAL-7.5HP-4 | ||||||
| Components | 4 | Vacuum blower： | 3.75KW/5HP | 4 | Vacuum blower： | 3.75KW/5HP | 4 | Vacuum blower： | 5KW/7.5HP |
| Mixing Capacity（kg/hr） | 50 | Hopper receiver: | 7.5L*4PCS | 100 | Hopper receiver: | 7.5L*4PCS | 200 | Hopper receiver: | 12L*4PCS |
| Batch Weight（kg） | 0.6 | Vacuum Air Pipe: | 2” | 1.2 | Vacuum Air Pipe: | 2” | 2.2 | Vacuum Air Pipe: | 2.5” |
| Main Material Dosing Range (%) | 5~100 | Material Pipe: | 2” | 5~100 | Material Pipe: | 2” | 5~100 | Material Pipe: | 2” |
| Additive Dosing Range（%） | 0.5~10 | Conveying Distance: | ≤5m | 0.5~10 | Conveying Distance: | ≤5m | 0.5~10 | Conveying Distance: | ≤5m |
| Main Hopper Volume（L） | 18 | Conveying Lift: | ≤4m | 25 | Conveying Lift: | ≤4m | 32 | Conveying Lift: | ≤4m |
| Additive Hopper Volume（L） | 18 | Sucking Probe: | 2”*4PCS | 25 | Sucking Probe: | 2”*4PCS | 32 | Sucking Probe: | 2”*4PCS |
| Mixing Barrel Volume（L） | 6 | 6 | 20 | ||||||
| Power Supply(V/Hz) | 1Φ | Power Supply(V/Hz) | 3Φ | 1Φ | Power Supply(V/Hz) | 3Φ | 1Φ | Power Supply(V/Hz) | 3Φ |
| 230/50 | 220V-440V | 230/50 | 220V-440V | 230/50 | 220V-440V | ||||
| Total Power（KW） | 3.87KW | 3.87KW | 5.25KW | ||||||
| Compressed Air （kgf/cm2） | 6~8 | ||||||||
| Noise Level（dB） | <75 | ||||||||

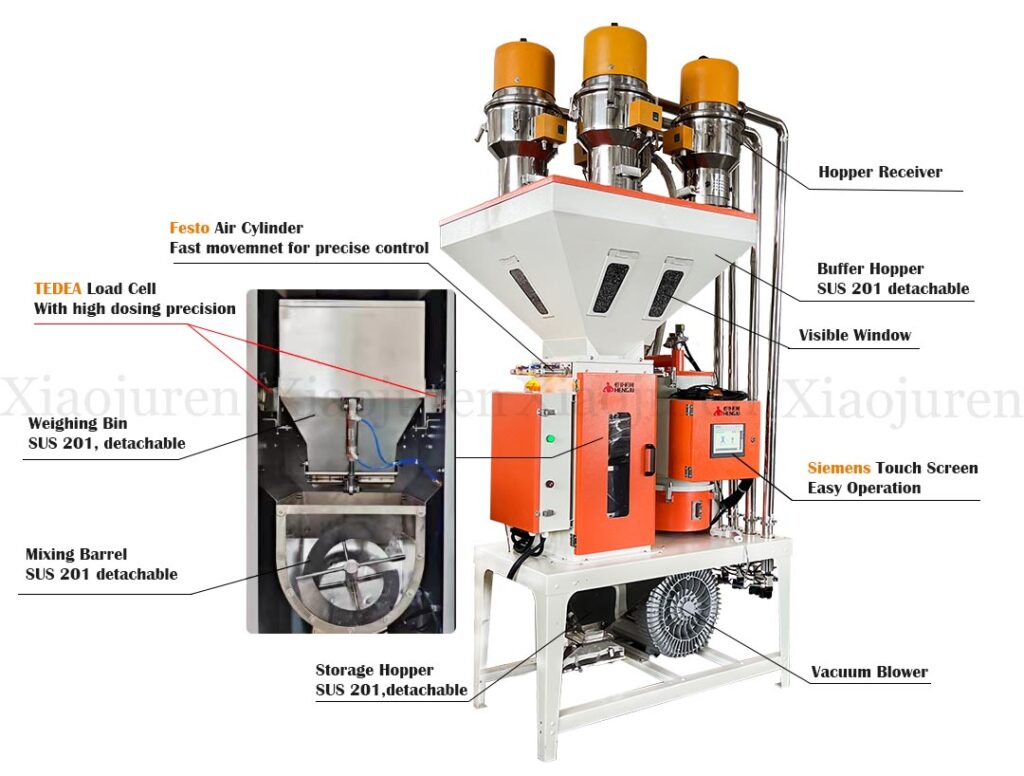

Features
- Gravimetric Blender adopted functions such as advanced algorithm of controlling, autonomous optimization, automatic calibration and anti-vibration, can ensure the highest accuracy.
It can dose 4-8 components.
Up to 100recipes can be stored for later use;
Etherhet inerface attached to the controller works together with the relevant software, material proportion data (max.output, actual output, dosing accuracy) can be transmitted to control product quality. - Vacuum blower is with high-power, large-sized hose and hopper for bigger conveying capacity.
The blower motor adopts pure copper coil, which makes it with stable and durable performance.
Aluminum alloy high-pressure impeller, resistant to high temperatures, not easy to corrode, not easy to rust.
Connection Diagram

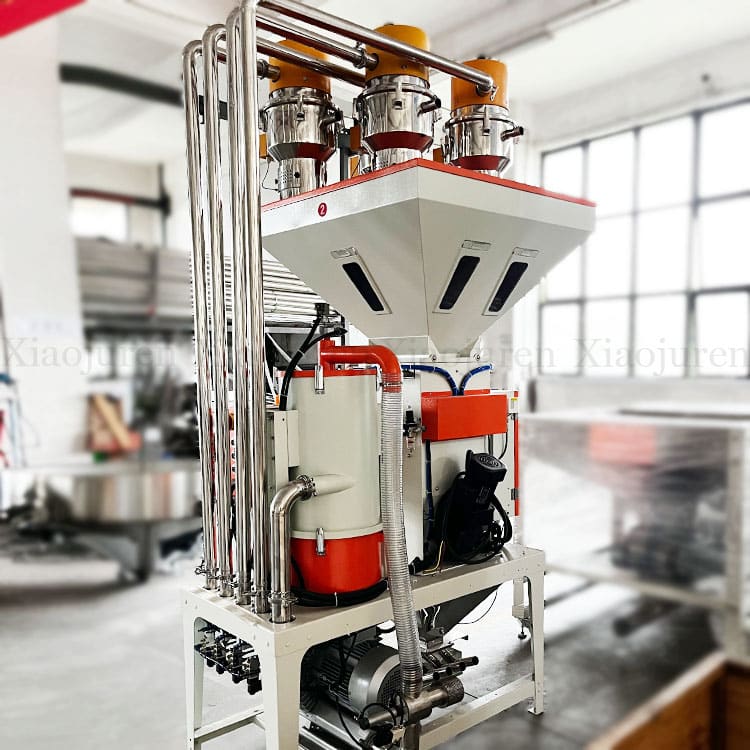

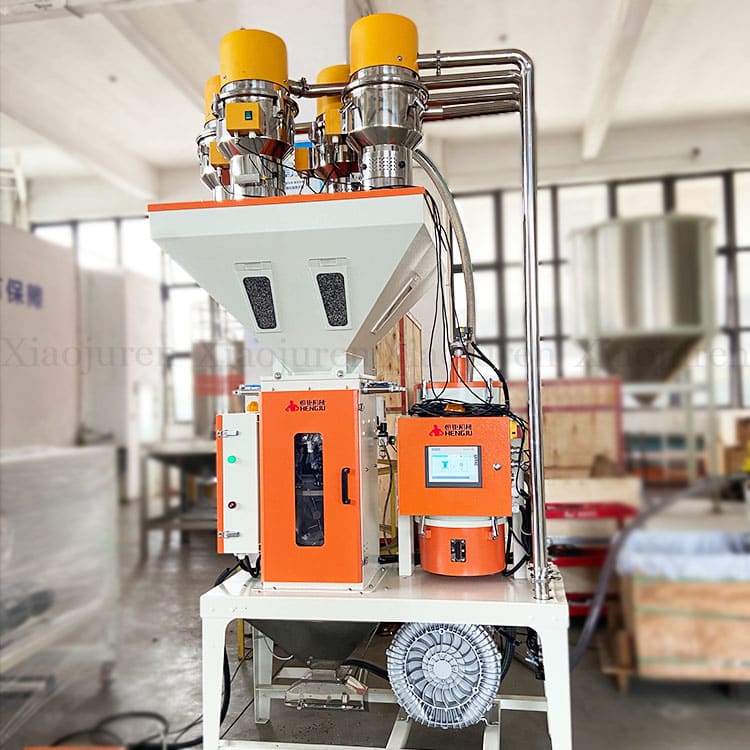

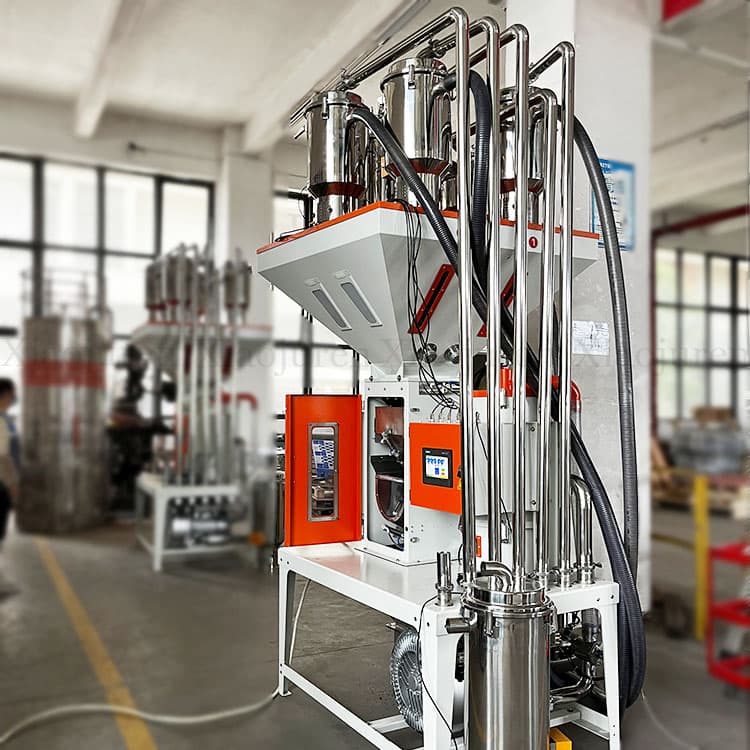

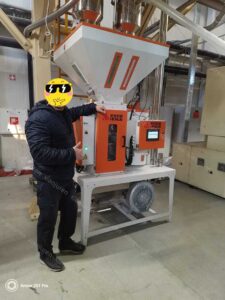

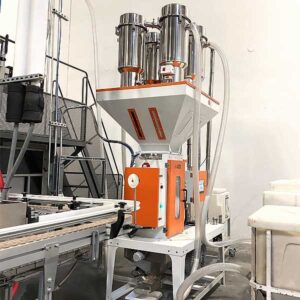

Project Show
