Specification
Model | HGB-400 | HGB-600 | HGB-800 | HGB-1200 | HGB-2000 |
Components | 2-8 | 2-8 | 2-8 | 2-8 | 2-8 |
Feeding Way-Slide Gate | 2-7 | 2-7 | 2-7 | 2-7 | 2-7 |
Feeding Way-Screw Feeding | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 |
Mixing Capacity(kg/hr) | 400 | 600 | 800 | 1200 | 2000 |
Batch Weight(kg) | 4.5 | 6 | 8 | 12 | 20 |
Main Material Dosing Range (%) | 5~100 | 5~100 | 5~100 | 5~100 | 5~100 |
Additive Dosing Range(%) | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 |
Color Dosing Range (%) | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 |
Recycled Material Dosing Range (%) | 10-100 | 10-100 | 10-100 | 10-100 | 10-100 |
Main Hopper Volume(L) | 45 | 70 | 100 | 130 | 160 |
Additive Hopper Volume(L) | 45 | 70 | 100 | 130 | 160 |
Recycled Material Hopper Volume(L) | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 |
Mixing Barrel Volume(L) | 20 | 40 | 40 | 80 | 80 |
Power Supply(V/Hz) | 3Φ | 3Φ | 3Φ | 3Φ | 3Φ |
230/50 | 230/50 | 230/50 | 400/50 | 400/50 | |
Total Power(KW) | 0.48 | 0.78 | 0.78 | 1.73 | 1.73 |
Compressed Air (kgf/cm2) | 6~8 | ||||
Max. Noise Level(dB) | <75 |
Features
- Capable of storing up to 100 recipes for convenient retrieval and utilization.
- Incorporates advanced control algorithms for autonomous optimization and automatic calibration, and anti-vibration to achieve high accuracy in dosing 4-8 components.
- Etherhet inerface attached to the controller works together with the relevant software, material proportion data (max.output, actual output, dosing accuracy) can be transmitted to control product quality.
- With sound and flash alarm, operators can be informed shortly and evidently for reparation.
- Recycled materail with irregular size can be fed through the screw to avoid stuck or bridging problem.
- Multiple recycled flakes can be fed through the screws simultaneously.
- Fast dosing rate and large dosing capacity for plastic extrusion processors.
- Features a color touch screen with intuitive operation and language options, allowing easy navigation.
- PLC panel adoption contributes to reliable performance and simplified maintenance processes.
![](https://xjrmixer.com/wp-content/uploads/2024/04/01-称重带大螺杆细节图示-带水印-1024x776.jpg)

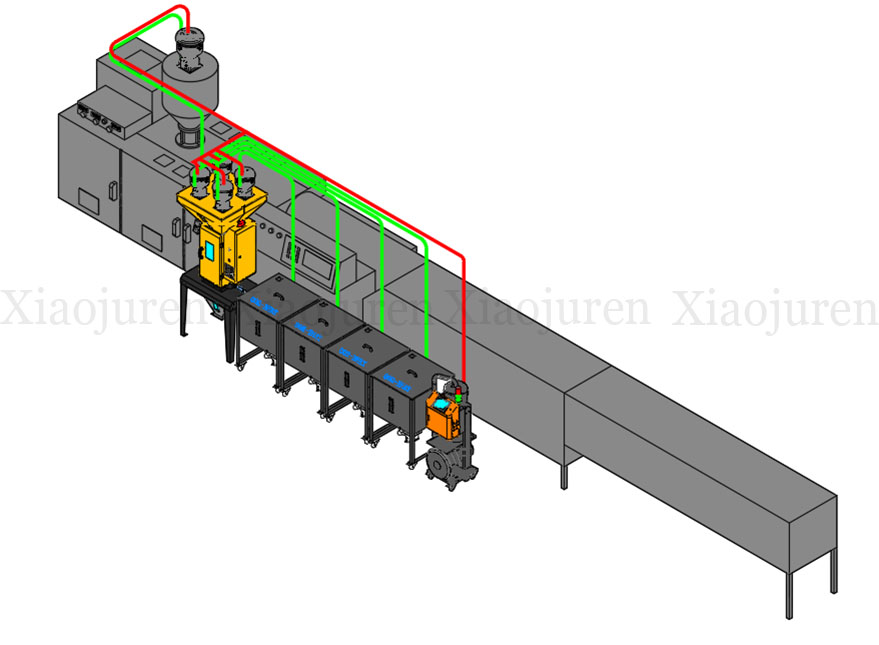

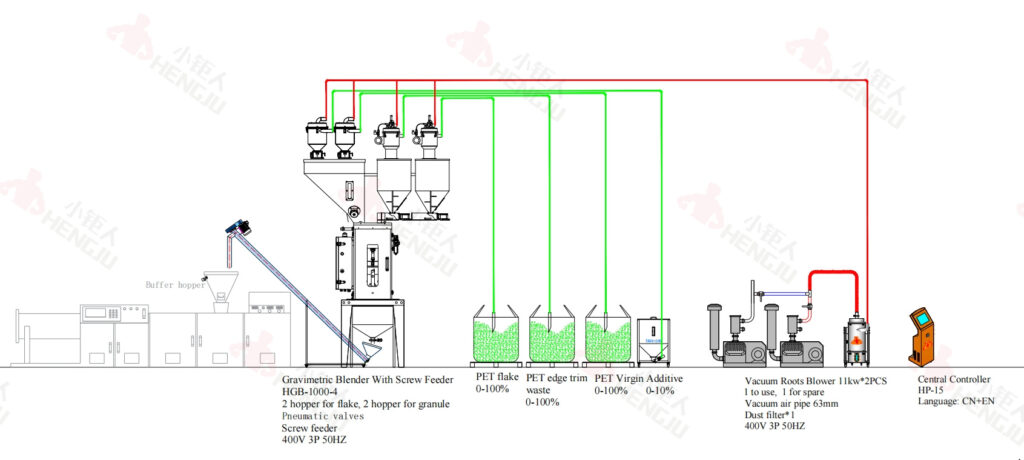

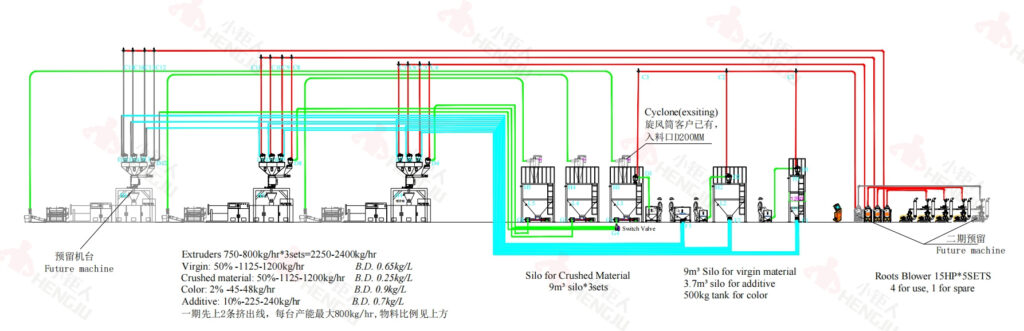

Connection Diagram
![](https://xjrmixer.com/wp-content/uploads/2024/04/带螺杆喂料的称重挤出机连接_1带水印2-2.jpg)
![](https://xjrmixer.com/wp-content/uploads/2024/04/称重挤出机连接_1带水印.jpg)
Project Show
![](https://xjrmixer.com/wp-content/uploads/2017/12/sheet-extrusion-2-1024x704.jpg)
![](https://xjrmixer.com/wp-content/uploads/2024/04/场景图1-带水印-1024x704.jpg)
